Home / Products / Reel / Hose reel - 800078A

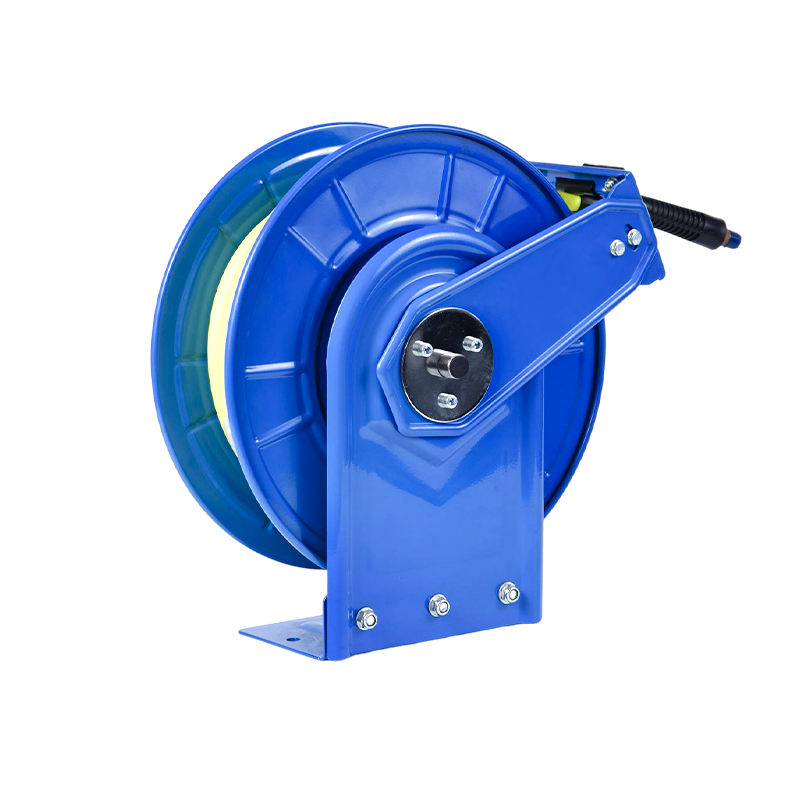

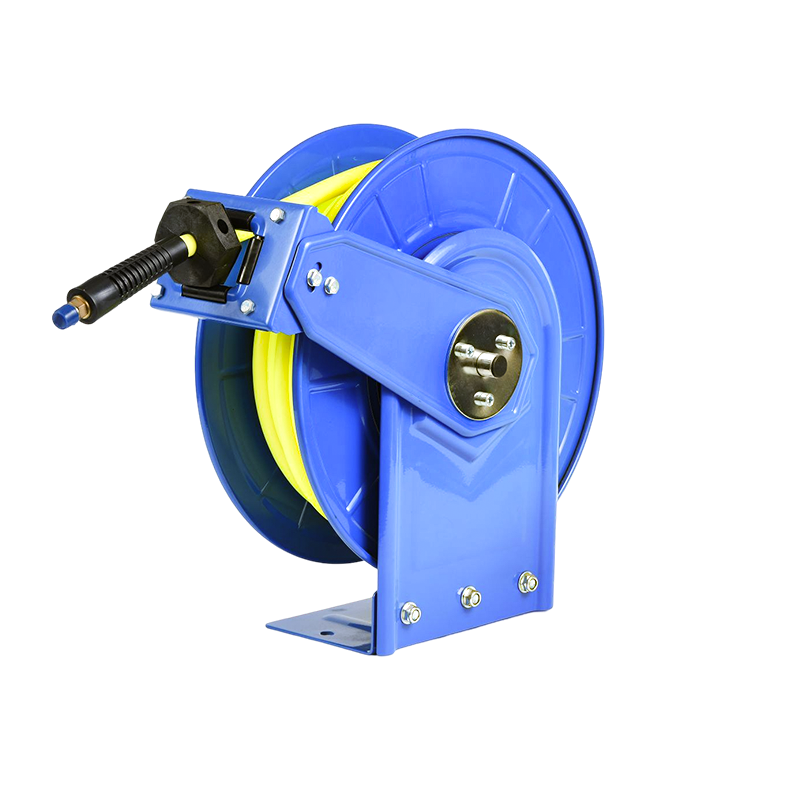

Hose reel - 800078A

Product Specification:
Features:
1. Hose included.
2. Galvanized dual supporting arms and bases.
3. Corrosion-resistant powder coating.
4. Multi-position release ratchet.
5. Dual axle support can withstand the constant vibration of mobile installations.
6. Multi-position guide arm allows mounting on wall, truck,tank or overhead.
7. Durable heavy-duty steel construction.
8. Weep holes designed to drain moisture are located on the edge of drum. This corrosion reducing feature makes this reel ideal for mobile installations.
9. Four-way direction rollers allow the hose to be easily pulled from the reel.
10. Self-locking fasteners stay tight even in mobile installations.
11. Narrow size is ideal for easy placement and storage.

Part No
Aplication
Hose size
Hose material
Maximum W.P.
Temp. Range(°F)
Reel Inlet
Hose outlet
Lead-in hose(5ft)
800078A
Air
3/8 in. x 50 ft.
Rubber
300 PSI
-20° to 200°
1/4 in. FNPT
1/4 in. MNPT
3/8 in. x 3 ft. (1/4 in. MNPT)
800078B
Air
3/8 in. x 75 ft.
PVC
300 PSI
-4° to 140°
1/4 in. FNPT
1/4 in. MNPT
3/8 in. x 3 ft. (1/4 in. MNPT)
800078C
Air
3/8 in. x 75 ft.
Rubber and PVC
300 PSI
-20° to 200°
1/4 in. FNPT
1/4 in. MNPT
3/8 in. x 3 ft. (1/4 in. MNPT)
