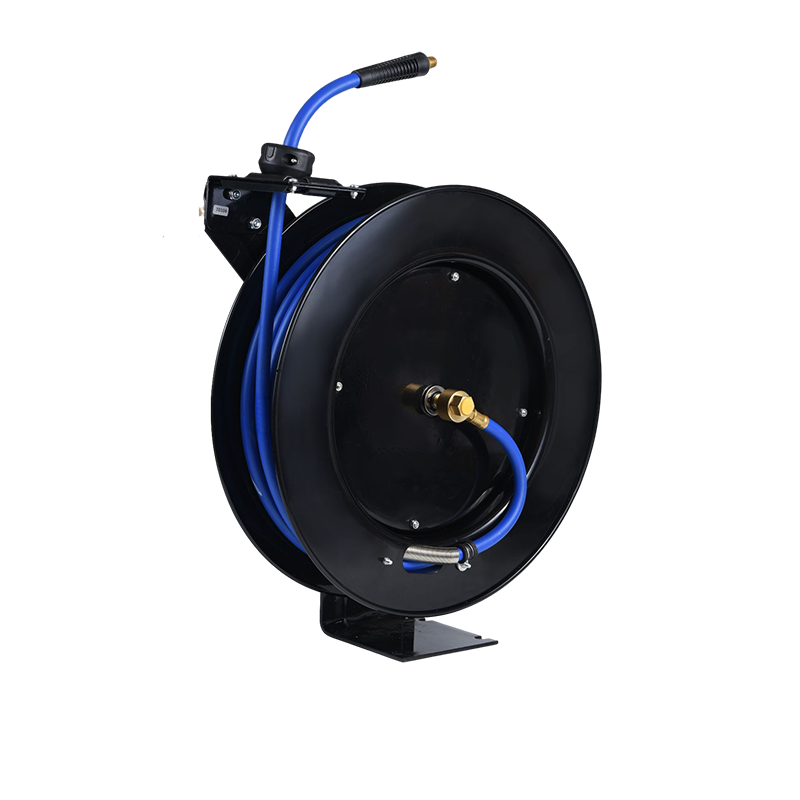

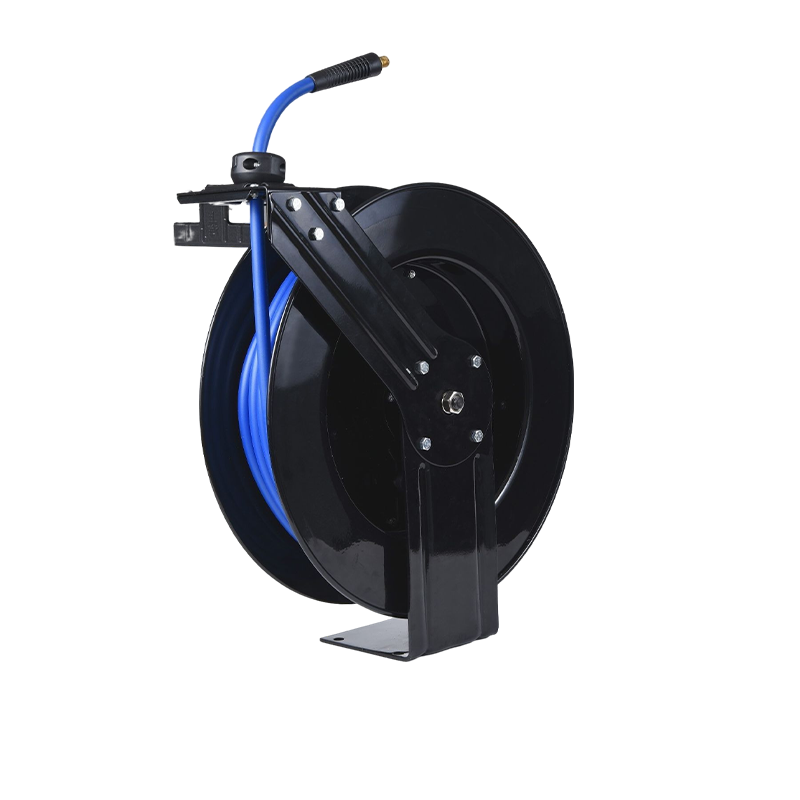

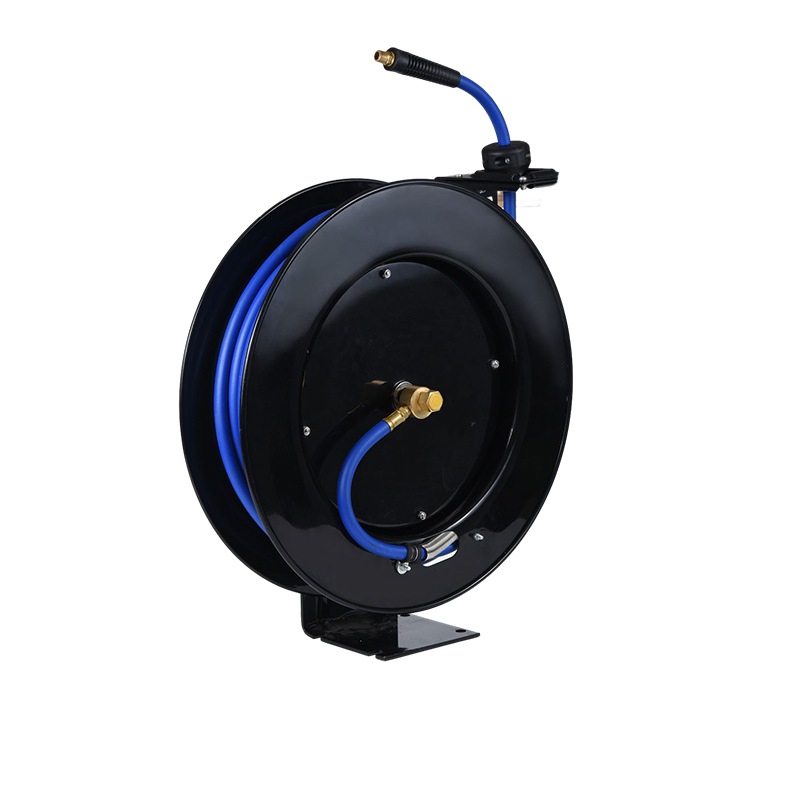

Hose reel - 800085

Product Specification:

Features:

1. Hose included.
2. Economical reels for indoor shop and industrial applications.
3. Multi-position guide arm allows mounting on wall, tank or overhead.
4. Weep holes designed to drain moisture are located on the edge of drum.
5. Metal latching pawl makes an audible clicking sound allowing the latching zone to be locked quickly and easily.
6. Durable heavy-duty steel construction.
7. Four-way directional rollers allow the hose to be easily pulled from the reel.
8. Self-locking fasteners stay tight even in mobile installations.
9. Narrow size is ideal for easy placement and storage.
10. Spring motor is fully enclosed and packed with grease.
11. Multi-position release ratchet.

Part No
Aplication
Hose size
Hose material
Maximum W.P.
Temp. Range(°F)
Reel Inlet
Hose outlet
Lead-in hose(5ft)
800085
Air
3/8 in. x 50 ft.
PVC
300 PSI
-4° to 200°
1/4 in. FNPT
1/4 in. MNPT
3/8 in. x 3 ft. (1/4 in. MNPT)
800082
Air
3/8 in. x 25 ft.
PVC
300 PSI
-4° to 200°
1/4 in. FNPT
1/4 in. MNPT
3/8 in. x 3 ft. (1/4 in. MNPT)
800083
Air
3/8 in. x 50 ft.
PVC
300 PSI
-4° to 200°
1/4 in. FNPT
1/4 in. MNPT
3/8 in. x 3 ft. (1/4 in. MNPT)
